Surface Door Closer 505 Series
· Grade 1 ANSI Test Report
· Meets and exceeds ADA requirements
· Tri Packed
· Adjustable Back check
· Power Adjustable#2,#3,#4
· Self-Drilling screws
· Cover included
· Bracket included
· UL Listed

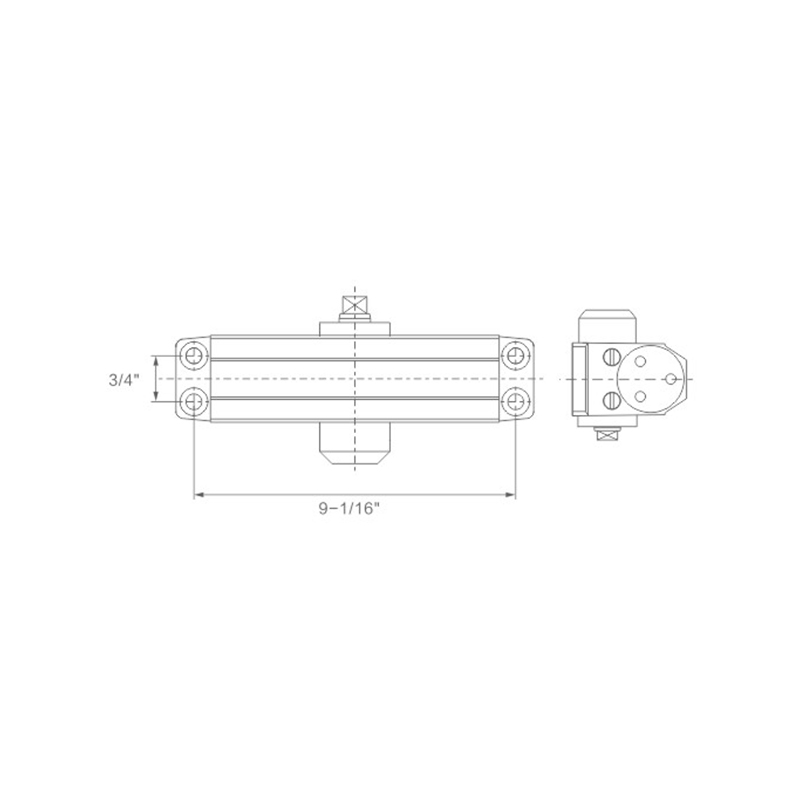

· 9-1/16"x3/4" Hole Pattern
| Model | Powersize | ADA | BC | DA | Bracket | Full Covor | slim Cover | Hold Open |
| 5054AW | 4 | Y | Y | Optional Arm | ||||
| 5054BW | 4 | Y | Y | Y | Optional Arm | |||
| 5055AW | 5 | Y | Y | Optional Arm | ||||
| 5055BW | 5 | Y | Y | Y | Optional Arm | |||
| 501-4BW | 1-4 | Y | Y | Y | Y | Optional Arm | ||
| 502-5BW | 2-5 | Y | Y | Y | Optional Arm | |||
| 503-6BW | 3-6 | Y | Y | Y | Optional Arm |
